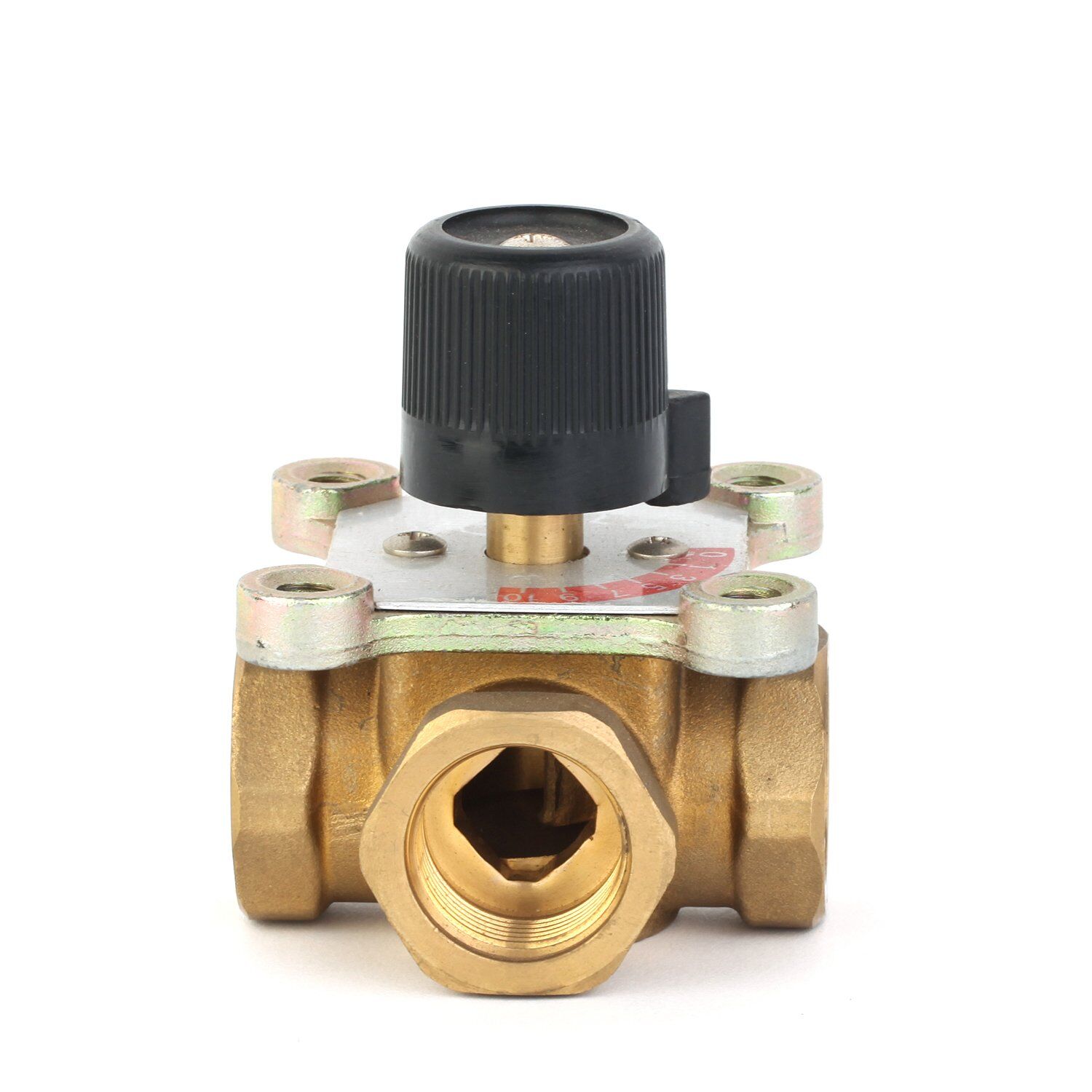

3-way rotary mixing valve T02

The three-way mixing valve MIX M 3 is used in central heating systems. We regulate through the valve water supply temperature. The required flow temperature of the central heating system is obtained by mixing warm (feed from the boiler) with cold (return from the installation) medium. That the pump does not run from the 100% closing side of the valve the only possible way to install the pump is the mixed refrigerant side.

The heating medium is mixed with water returning from the installation. By increasing the return temperature the boiler is also protected against corrosion.

Technical data

Maximum working pressure: 10 bar

Maximum working temperature: 110˚C

Rotation angle: 90 degree

Body, plug, cover: Brass

Scale: Stainless Steel

Roller seal: EPDM —- two O-rings

Cover sealing: EPDM

Handle: plastic, blue/black
