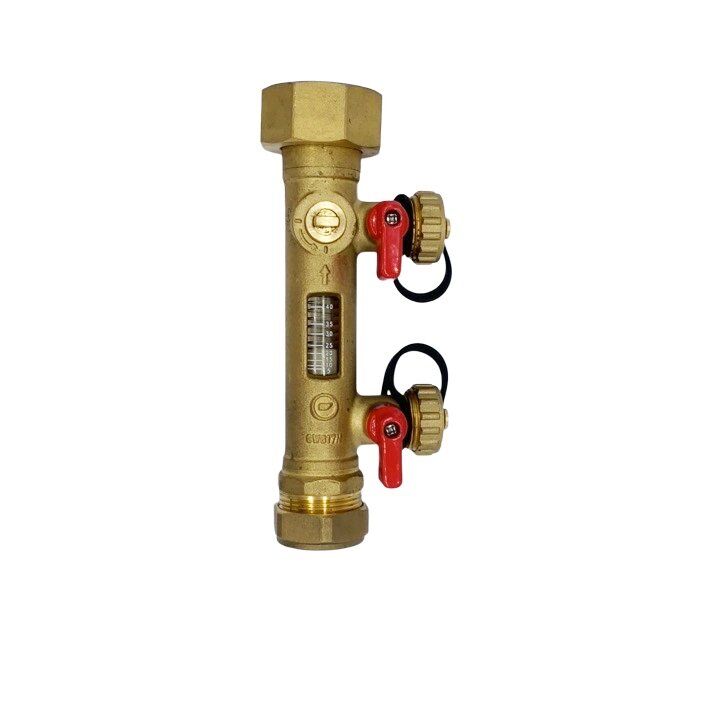

Flow Balancing Valves with Fill & Flush- FLV10

• Regulates the flow of fluid through the system
• Maximises heat collection in cylinders
• Bi-directional ball valve stops water flow and allows access to fill and flush connection for servicing
• 28mm compression connections according to EN1254-2
• G 3/4″ Fill & Flush connections with retained sealing cover caps
• Clear window allows for easy adjustment of the flow rate
• Suitable for use with water and up to 50% glycol solutions

Material: brass CW617N/ CW602N

Technical data:
Medium: water, glycol solutions
Max. percentage of glycol: 50%
Max. working pressure: 10 bar
Working temperature range: -20-110°C
Flow rate range unit of measurement: l/min
Accuracy: ±10%
Control stem angle of rotation: 90

28mm Flow Balancing Valve 4 – 40 L/min with G3/4″ Fill & Flush
28mm Flow Balancing Valve 10 – 50 L/min with G3/4″ Fill & Flush
